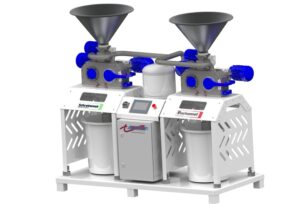

Schrotomat

Schrotomat – the solution to your dust problem!
  • Continuously variable roller adjustment from 0 mm to 5 mm
  • 2 x 1,5 KW motor ready to use and with overload protection
  • Absolutely dust-free environment thanks to aspiration
  • Stainless steel machine body
  • Volumetric dosing with steady material feed
  • Dust suction system with self-cleaning filters
  •  Tank connection with sliding sleeve to guarantee dust-free in-feed
  • Profiled steel rollers for steady in-feed
  • Stripper plates made of stainless steel create a self-cleaning mechanism for the rollers
  • Control display
  • Automatic switch-off via capacity detector
  • Motorized drive on each roller at 1:2 ratio

The Feed mechanism

  • The electronically operated feeding device assures steady in-feed of the material to the Schrotomat
  • No need for manual adjustment
  • Flange-mounted hopper with magnetic separator
Available Versions
  • Possibility to build the Schrotomat into a fully-automated system
  • Flockomat and Schrotomat can be both built on one frame and provided with dust aspiration system
  • Alternatively Flockomat or Schrotomat individually on one base plate


Type: Schrotomat
Rollers width: 100 mm
Measures lx w x h (m) 1.2 x 0.8 x 1.67
Power input: 5 kW
Connection needed: 230/400 V 16A
Weight: 300 Kg
