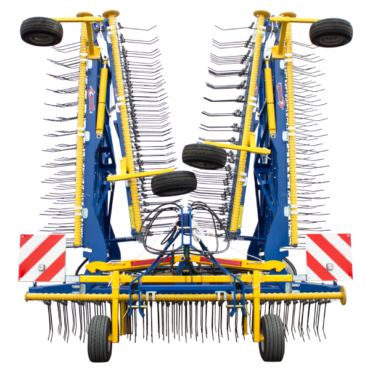

TS 920/M3/5

  • Weight: 900 kg
  • Required traction force: 44 kW / 60 HP
  • Working width: 9.20 m with a 10 cm overlap on both sides
  • Compartments: 1 x 3.0 m, 2 x 2.35 m, 2 x 0.75 m
  • Folding system: Scissors folding system with 4 double-acting hydraulic cylinders 2 DW control units needed, 2 cylinders each connected in series
  • Automatic transportation lock: no
  • Adjustment: Hydraulic folding system of the two outer compartments
  • Stabilising wheels: 4 stabilising wheels 16 x 6.5-8
  • Transport width: 3.00 m
